Compact Telehandler Genie GTH-2506

Compact Telehandler Genie GTH-2506

Compact dimensions, easy to manoeuvre, Genie GTH-2506 is suitable for all projects that require high performance and small place. It features a robust construction, high capacity and impressive torque!

Lifting height maximum: 5,79 m.
Lifting capacity maximum: 2 500 kg.
Lift capacity at maximum height: 2 000 kg.
lift capacity at maximum reach: 900 kg.
Forward reach maximum: 3,35 m
Reach at maximum height: 60 cm.

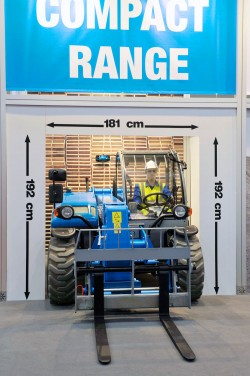

А. Height: 1,92 m.
В. Height at steering wheel: 1,25 m.
C. Width: 1,81 m.
D. Cab width: 86 cm.
Е. Track: 1,5 m.
F. Wheelbase: 2,32 m.
G. Length at front wheels: 3,35 m.
H. Length at fork-holder plate: 3,84 m.
I. Ground clearance: 33 cm.
J. Overall length: 5,04 м.
М1. Obstruction angle: 90
М2. Departure angle: 60
Inside/ Outside turning radius: 1,6 m./3,25 m.
Break-out force: 3 700 kg.
Towing capacity at dynamometer: 3 100 kg.
Drive speed max: 26 km/h
Fork-holder plate rotation: 130 degrees
Tyres: DIN 70361 12-16,5” PR10 джанти с 8 дупки
Lifting/ lowering speed:7 sec./ 4 sec.
Extension/retraction speed: 7 sec./ 4 sec.
Engine Deutz TD 2.9 L4, 4-cylinder diesel
74 hp (55.4 kW), stage IIIB
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. Both piston type.
Boom and Control system gear pump type – 280 Bar, 70 l/min
Petrol tank capacities: 60 l
Engine oil capacities: 10 л
Hydraulic oil tank capacities: 65 л
Weight: 4580 кг.
