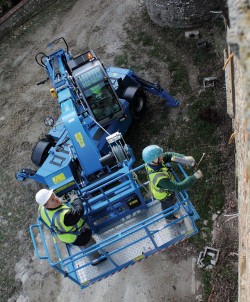

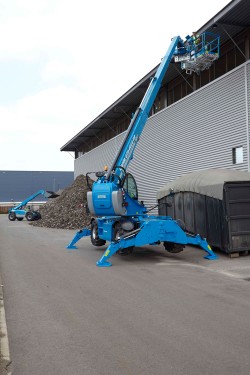

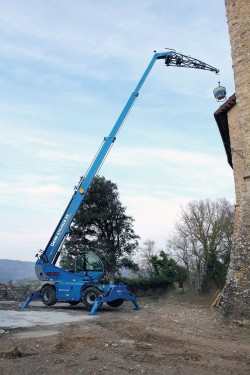

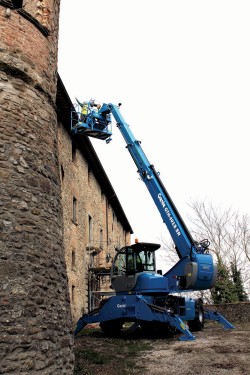

Rotating rough terrain telehandler Genie GTH-4018R
These R (Rotating) models are easy to operate, simple to maintain, reliable and cost effective, which makes them a perfect choice for every worksite. They are ideal for rough and dirty tasks, where high lifting capacity and outreach is required.Genie GTH 4018 R offer you lifting capacity of 4000 kg. and maximum lifting height up to 17,54 m.
Lifting height maximum with outriggers: 17,54 m.
Lifting height maximum without outriggers: 17,30m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :2 000 kg.
Lift capacity at maximum reach: 500 kg.
Forward lift maximum: 15,53 m
Reach at maximum height: 3,80 m
А. Height: 2,99 m.
В. Height at steering wheel: 2,22 m.
C. Width: 2,40 m.
D. Cab width: 93 см.
Е. Track: 1,95 м.
F. Wheelbase: 3,00 м.
G. Length at front wheels: 4,66 м.
H. Length at fork-holder plate: 6,60 м.
I. Ground Clearance: 34 см.
L. Overall width, outriggers extended: 4,36 m.
M. Side rear overhang: 2,60m
N. Side front overhang: 3,97m
0. Overall length: 7,80 m.
R1. Obstruction angle: 26 degrees
R2. Departure angle: 26 degrees
Inside/Outside turning radius: 1,97 м./4,12 м.
Breack-out force: 5 900 kg.
Towing capacity at dynamometer: 7 000 kg.
Drive speed max.: 35 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:18-19.5” PR16 10 holes wheel disc
Lifting/ lowering speed: 14 sec./ 9 sec.
Extension/ retraction speed: 27 sec./ 17 sec.
Engine Perkins 1104 D-44T 4-cylinder turbo diesel 99 hp (74 kW), stage III
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. 2-speed mechanical gearbox.
Boom & control system gear pump type: 280 Bar, 88L/min.
Petrol tank capacities: 205 l
Engine oil capacities: 11,5 l
Hydraulic oil tank capacities: 220 l
Weight:14 000 kg.
Lifting height maximum without outriggers: 17,30m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :2 000 kg.
Lift capacity at maximum reach: 500 kg.
Forward lift maximum: 15,53 m
Reach at maximum height: 3,80 m
А. Height: 2,99 m.
В. Height at steering wheel: 2,22 m.
C. Width: 2,40 m.
D. Cab width: 93 см.
Е. Track: 1,95 м.
F. Wheelbase: 3,00 м.
G. Length at front wheels: 4,66 м.
H. Length at fork-holder plate: 6,60 м.
I. Ground Clearance: 34 см.
L. Overall width, outriggers extended: 4,36 m.
M. Side rear overhang: 2,60m
N. Side front overhang: 3,97m
0. Overall length: 7,80 m.
R1. Obstruction angle: 26 degrees
R2. Departure angle: 26 degrees
Inside/Outside turning radius: 1,97 м./4,12 м.
Breack-out force: 5 900 kg.
Towing capacity at dynamometer: 7 000 kg.
Drive speed max.: 35 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:18-19.5” PR16 10 holes wheel disc
Lifting/ lowering speed: 14 sec./ 9 sec.
Extension/ retraction speed: 27 sec./ 17 sec.
Engine Perkins 1104 D-44T 4-cylinder turbo diesel 99 hp (74 kW), stage III
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. 2-speed mechanical gearbox.
Boom & control system gear pump type: 280 Bar, 88L/min.
Petrol tank capacities: 205 l
Engine oil capacities: 11,5 l
Hydraulic oil tank capacities: 220 l
Weight:14 000 kg.
