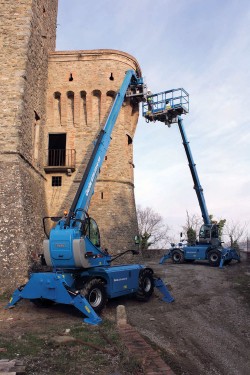

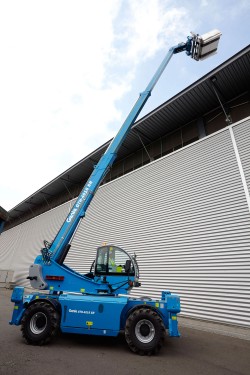

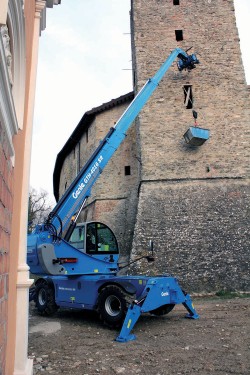

Rotating Rough Terrain Telehandler Genie GTH-4016 R

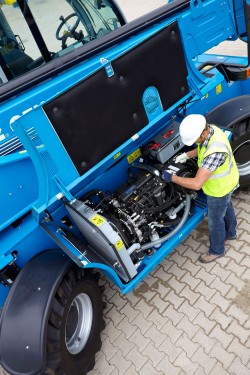

These R (Rotating) models are easy to operate, simple to maintain, reliable and cost effective, which makes them a perfect choice for every worksite. Genie GTH 4016 R has 4000 kg. lifting capacity and maximum lifting height - 15,42 m.
Lifting height maximum without outriggers: 15,31m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :2 500 kg.
Lift capacity at maximum reach: 700 kg.
Forward lift maximum: 13,35 m
Reach at maximum height: 3.40 m
А. Height: 2,99 m.
В. Height at steering wheel: 2,22 m.
C. Width: 2,40 m.
D. Cab width: 93 см.
Е. Track: 1,95 м.
F. Wheelbase: 3,00 м.
G. Length at front wheels: 4,66 м.
H. Length at fork-holder plate: 6,76 м.
I. Ground Clearance: 34 см.
J. Overall width, outriggers extended: 3,64 m.
L. Overall length: 7,96 m.
R1. Obstruction angle: 31 degrees
R2. Departure angle: 31 degrees
Inside/Outside turning radius: 1,97 м./4,12 м.
Breack-out force: 5 900 kg.
Towing capacity at dynamometer: 6 900 kg.
Drive speed max.: 35 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:18-19.5” PR16 10 holes wheel disc
Lifting/ lowering speed: 14 sec./ 9 sec.
Extension/ retraction speed: 28 sec./ 22 sec.
Engine Perkins 1104 D-44T 4-cylinder turbo diesel 99 hp (74 kW), stage III
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. 2-speed mechanical gearbox.
Boom & control system gear pump type: 280 Bar, 88L/min.
Petrol tank capacities: 205 l
Engine oil capacities: 11,5 l
Hydraulic oil tank capacities: 220 l
Weight:12 900 kg.
