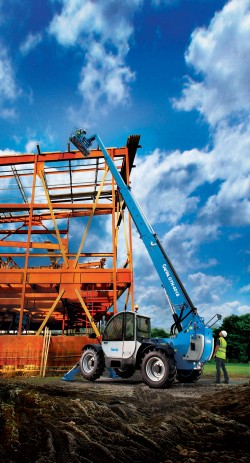

Telehandler Genie GTH-4018
Investment in Versatility! The telehandler Genie GTH-4018 has max. lifting height 17,61 m. and lift capacity at maximum height - 2 000 kg.
Lifting height maximum with outriggers: 17,61 m.
Lifting height maximum without outriggers: 17,38m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :2 000 kg.
Lift capacity at maximum reach: 700 kg.
Forward lift maximum: 13,36 m
Reach at maximum height 89 сm.
А. Height: 2,44 m.
В. Height at steering wheel: 1,60 m.
C. Width: 2,32 m.
D. Cab width: 93 см.
Е. Track: 1,92 м.
F. Wheelbase: 2,95 м.
G. Length at front wheels: 4,83 м.
H. Length at fork-holder plate: 6,57 м.
I. Ground Clearance: 35 см.
J. Overall width, outriggers extended: 2,87 m.
L. Overall length: 7,77 m.
М1. Obstruction angle: 40 degrees
М2. Departure angle: 46 degrees
Inside/Outside turning radius: 1,48 м./3,8 м.
Breack-out force: 6 000 kg.
Towing capacity at dynamometer: 7 600 kg.
Drive speed max.: 35 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:405/70 20” PR14 8 holes wheel disc
Lifting/ lowering speed: 14 sec./ 9 sec.
Extension/ retraction speed: 22 sec./ 13 sec.
Engine Perkins 854E-E34TA turbo air coolerdiesel 100 hp (75 kW), stage IIIB
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. Both piston type.
Boom and Control system gear pump type:– 280 Bar, 99 l/min
Service brake gear pump type – 200 Bar, 46 l/min
Petrol tank capacities: 170 l
Engine oil capacities: 8 l
Hydraulic oil tank capacities: 112 l
Weight:11 980 kg.
Lifting height maximum without outriggers: 17,38m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :2 000 kg.
Lift capacity at maximum reach: 700 kg.
Forward lift maximum: 13,36 m
Reach at maximum height 89 сm.
А. Height: 2,44 m.
В. Height at steering wheel: 1,60 m.
C. Width: 2,32 m.
D. Cab width: 93 см.
Е. Track: 1,92 м.
F. Wheelbase: 2,95 м.
G. Length at front wheels: 4,83 м.
H. Length at fork-holder plate: 6,57 м.
I. Ground Clearance: 35 см.
J. Overall width, outriggers extended: 2,87 m.
L. Overall length: 7,77 m.
М1. Obstruction angle: 40 degrees
М2. Departure angle: 46 degrees
Inside/Outside turning radius: 1,48 м./3,8 м.
Breack-out force: 6 000 kg.
Towing capacity at dynamometer: 7 600 kg.
Drive speed max.: 35 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:405/70 20” PR14 8 holes wheel disc
Lifting/ lowering speed: 14 sec./ 9 sec.
Extension/ retraction speed: 22 sec./ 13 sec.
Engine Perkins 854E-E34TA turbo air coolerdiesel 100 hp (75 kW), stage IIIB
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. Both piston type.
Boom and Control system gear pump type:– 280 Bar, 99 l/min
Service brake gear pump type – 200 Bar, 46 l/min
Petrol tank capacities: 170 l
Engine oil capacities: 8 l
Hydraulic oil tank capacities: 112 l
Weight:11 980 kg.
