Telehandler Genie GTH-4014
Genie 4000 kg. capacity high reach rough terrain telehandlers have the reach and perforamance capabilities for demanding jobs. The High Reach models offer you lifting heights of 13,57 m. to 17,61m.
Lifting height maximum with outriggers: 13,57 m.
Lifting height maximum without outriggers: 13,38m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :3 000 kg.
Lift capacity at maximum reach: 1250 kg.
Forward lift maximum: 9,08 m
Reach at maximum height 48 сm.

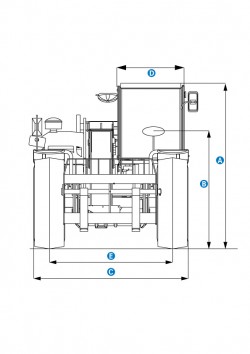

А. Height: 2,40 m.
В. Height at steering wheel: 1,56 m.
C. Width: 2,32 m.
D. Cab width: 93 см.
Е. Track: 1,92 м.
F. Wheelbase: 2,95 м.
G. Length at front wheels: 4,79 м.
H. Length at fork-holder plate: 6,06 м.
I. Ground Clearance: 30 см.
J. Overall width, outriggers extended: 2,87 m.
L. Overall length: 7,26 m.
М1. Obstruction angle: 40 degrees
М2. Departure angle: 46 degrees
Inside/Outside turning radius: 1,48 м./3,8 м.
Breack-out force: 6 000 kg.
Towing capacity at dynamometer: 8 073 kg.
Drive speed max.: 33 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:405/70 20” PR14 8 holes wheel disc
Lifting/ lowering speed: 12 sec./ 7 sec.
Extension/ retraction speed: 17 sec./ 11 sec.
Engine Perkins 854E-E34TA turbo air coolerdiesel 100 hp (75 kW), stage IIIB
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. Both piston type.
Boom and Control system gear pump type:– 280 Bar, 99 l/min
Service brake gear pump type – 200 Bar, 46 l/min
Petrol tank capacities: 170 l
Engine oil capacities: 8 l
Hydraulic oil tank capacities: 112 l
Weight:10 140 kg.
Lifting height maximum without outriggers: 13,38m.
Lifting capacity maximum: 4 000 kg.
Lift capacity at maximum height :3 000 kg.
Lift capacity at maximum reach: 1250 kg.
Forward lift maximum: 9,08 m
Reach at maximum height 48 сm.
А. Height: 2,40 m.
В. Height at steering wheel: 1,56 m.
C. Width: 2,32 m.
D. Cab width: 93 см.
Е. Track: 1,92 м.
F. Wheelbase: 2,95 м.
G. Length at front wheels: 4,79 м.
H. Length at fork-holder plate: 6,06 м.
I. Ground Clearance: 30 см.
J. Overall width, outriggers extended: 2,87 m.
L. Overall length: 7,26 m.
М1. Obstruction angle: 40 degrees
М2. Departure angle: 46 degrees
Inside/Outside turning radius: 1,48 м./3,8 м.
Breack-out force: 6 000 kg.
Towing capacity at dynamometer: 8 073 kg.
Drive speed max.: 33 km/h
Fork-holder plate rotation: 138 degrees
Tyres DIN 70361:405/70 20” PR14 8 holes wheel disc
Lifting/ lowering speed: 12 sec./ 7 sec.
Extension/ retraction speed: 17 sec./ 11 sec.
Engine Perkins 854E-E34TA turbo air coolerdiesel 100 hp (75 kW), stage IIIB
Transmission: Hydrostatic variable displacement pump linked to variable displacement motor. Both piston type.
Boom and Control system gear pump type:– 280 Bar, 99 l/min
Service brake gear pump type – 200 Bar, 46 l/min
Petrol tank capacities: 170 l
Engine oil capacities: 8 l
Hydraulic oil tank capacities: 112 l
Weight:10 140 kg.
